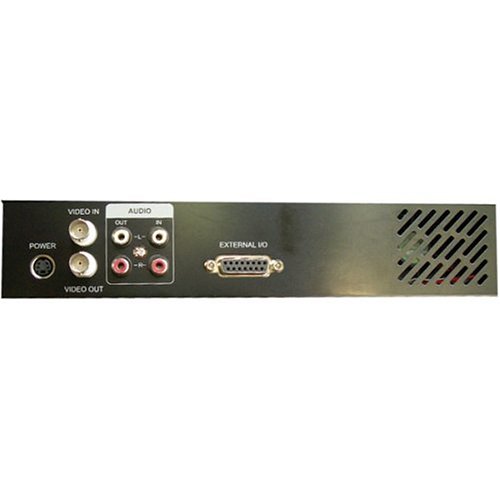

Amazon.com Product DescriptionThe Mace DVR-100 Single-channel DVR with Audio is a one-channel stand-alone DVR (digital video recorder) that uses digital technology to manage and store video images and audio on an HDD (hard disk drive) without image degradation or tape-swapping, making it an ideal replacement for aging time-lapse VCRs. This DVR includes many features, such as multiple easy searching settings, excellent recording quality, fast or slow playback in multiple speeds, and others. Easy to set-up and operate, the DVR-100 is feature- and functionality-rich enough to meet most any need, be it professional security surveillance or business-process monitoring, or school or home applications. The Mace DVR-100 utilizes Wavelet video compression, and achieves a maximum resolution of 720 by 576 effective pixels. The DVR-100 provides you with date and time index searching, and password protection for security purposes. This DVR has a built-in 80 GB (Gigabyte) IDE-type hard drive that is removable for upgrading up to 200 GBs. This unit supports both the NTSC/EIA and PAL/CCIR video formats (selected by switch), as well as featuring continuous, event and scheduling record options. The DVR-100 includes one BNC (Bayonet Neill-Concelman, RF-type) composite-video input and one BNC composite-video output connection, as well as an RS232/RS485 expandable communication port. Also included are one alarm input, one alarm output and one VCR trigger output connections. This unit also features an event log, video-loss detection and a real-time counter. Powered by a 12-volt DC adapter, the Mace DVR-100 has a maximum 60 fps (frames per second) refresh rate, and an operating temperature of 0 to 50 degrees Celsius. Technical Features: - Compression format: Wavelet
- Video inputs/outputs: 1 BNC composite video-in, 1 BNC composite video-out
- Resolution: up to 720 x 576 effective pixels
- HDD space: one 80-GB drive (removable for upgrading)
- Operating temperatures: 0 to 50 degrees Celsius
- Dimensions: 38 x 27 x 6.5 centimeters (W x D x H)
For ongoing surveillance or monitoring, the Mace DVR-100 is an excellent solution. With large amounts of storage and easy data back-up capabilities, you won't lose any critical video segments, and with its rich feature set, you gain valuable functionality across your surveillance system as a whole. Note: This system is compatible with most of Mace's optional multiplexers for expanding your system's capabilities. About Digital Video Recorders
A Digital Video Recorder (DVR) takes video signals from security cameras and converts the video stream into a digital format for storage on an internal hard drive. A DVR also provides a user interface to remotely manage many functions of the video files and cameras, including motion detection and pan/tilt/zoom features. At a minimum, a DVR should allow multiple users to view multiple cameras remotely. Effective video compression is one of the most important considerations when looking at DVRs. The most common video compression formats used in video surveillance are M-JPEG and MPEG-4. While proprietary compression technologies may provide superior quality, their lack of compatibility with Windows-based operating systems may become an issue for archival purposes. Issues of frame rate, resolution, disk size, motion detection, compression ratio, and camera noise all affect the storage capacity of a video surveillance system. High resolution is ideal to capture details, while high frame rates are needed to capture events. Frame rates of less than 20 fps tend to be jerky, while rates of 20 - 30 fps can be adequate for most surveillance needs. |
